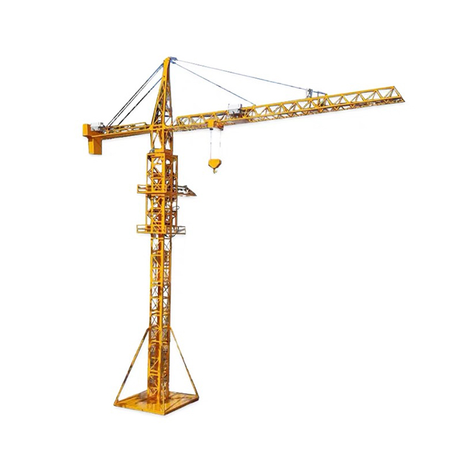

Tower cranes are iconic fixtures on city skylines, symbolizing growth and construction. While most people recognize their towering presence, few understand the intricate engineering and safety mechanisms that make them so efficient. These marvels of modern engineering are more than just steel structures; they are complex machines designed with precision to handle immense loads at staggering heights. From their innovative counterweight systems to their ability to climb within buildings, tower cranes are full of surprises. In this article, we delve into six lesser-known facts about these giants, shedding light on the technology and practices that keep construction sites safe and productive.
One of the most surprising safety innovations in modern tower crane design is the counterweight falling-off device. In extreme scenarios, such as when a crane risks tipping due to a sudden load loss (like a "dropped anchor" or rope breakage), certain systems can mechanically trigger the counterweights to fall off. This drastic measure is a last-resort effort to rebalance the crane and prevent a catastrophic collapse.
These devices often rely on mechanical linkages rather than electrical sensors, ensuring reliability even in power-free emergencies. For instance, a "tray type counterweight falling-off device" uses a trigger mechanism fixed to the crane's upper structure. When the crane's arm tilts beyond a safe angle, the system activates, releasing the counterweights in a controlled, mechanical process . Another design incorporates a "safe idle stroke" and dual safety mechanisms, including a safety rope and a limit pin, to prevent accidental release while ensuring the counterweight detaches only when truly necessary . This clever failsafe highlights the sophisticated safety-first engineering embedded in these towering machines.
While most tower cranes are anchored externally, some are designed to operate from within the building itself. Known as internal climbing tower cranes, these machines are installed inside elevator shafts or other vertical openings, using the building's own structure for support as they ascend.
How Internal Climbing Works:
The crane is initially assembled at the core of the structure.
As construction progresses, it uses a hydraulic climbing system to lift itself upward, typically one or two floors at a time .
Unlike external cranes, internal climbers have shorter towers, as the building itself acts as a support.
This method is particularly advantageous for constructing very tall skyscrapers, as it eliminates the need for an excessively tall external mast. However, it also places additional load on the building, requiring careful structural planning. Once construction is complete, these cranes must be disassembled in sections, often requiring an assist crane hoisted to the rooftop for the final dismantling .

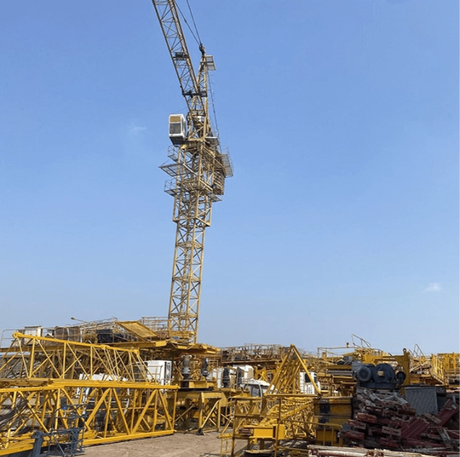

A tower crane doesn't arrive on-site fully assembled. Its erection is a meticulous, multi-stage operation that resembles building a giant piece of furniture with its own components.
Key Steps in the Erection Process:
Preparing the Foundation: A heavy concrete base is poured to anchor the crane, providing the critical stability needed to handle heavy loads .
Assembling the Mast: The vertical tower sections, or mast, are stacked using a mobile crane. Each section is bolted or connected to the one below it .
Adding the Slewing Unit: The topmost section includes the slewing unit (turntable), which allows the crane to rotate 360 degrees .
Attaching the Jib and Counter-Jib: The working arm (jib) is attached in sections, while the shorter counter-jib is installed on the opposite side to hold the counterweights .
Installing Counterweights and Mechanics: Massive concrete or steel counterweights are added to balance the load. Finally, the hoisting mechanism, hook, and load line are installed .
Only after rigorous safety checks and load testing is the crane declared ready for operation .
Safety is paramount, and tower cranes incorporate specialized anti-falling safety devices that act as critical failsafes. While often associated with construction hoists, the same core principles of overspeed detection and mechanical braking apply to crane hoisting systems.
These devices are engineered to activate when a dangerous condition is detected. For example, a common type of anti-falling safety device uses a centrifugal mechanism. Under normal operation, spring-loaded centrifugal blocks are held in place. However, if the hoisting speed exceeds a safe threshold—indicating a potential freefall—centrifugal force throws these blocks outward. This action engages a brake drum, which locks the system and safely stops the descent . This automatic, mechanical response is independent of the crane's primary electrical controls, providing a vital layer of protection for both the load and personnel below.
For skyscraper construction, a tower crane's height isn't fixed—it can grow along with the building using a technique called "top climbing" or "self-climbing." This process allows the crane to increase its own height without the need for an external mobile crane.
The Top-Climbing Process Simplified:
A hydraulic climbing unit is fitted around the top of the existing mast.
The entire crane's superstructure (including the cab, jib, and counter-jib) is lifted slightly.
This creates a gap in the mast structure.
A new mast section is slotted into this open space.
The superstructure is then lowered and secured to the newly extended mast .
This cycle is repeated whenever the building's height approaches the crane's working limit. It's a delicate and carefully engineered procedure that allows a single crane to serve throughout the construction of even the tallest buildings.
One of the most critical yet overlooked aspects of tower crane safety is the daily pre-shift inspection. A pervasive misconception is that "since the crane worked yesterday, it will work today." This complacency can have dire consequences .
A proper daily inspection doesn't always require a maintenance crew but should be a non-negotiable ritual for the crane operator. It involves a straightforward but systematic approach:
Table: Essential Daily Crane Check
This simple routine, taking just a few minutes, can identify minor issues before they escalate into major failures, preventing costly downtime and potentially saving lives.
Tower cranes are feats of engineering that blend brute strength with intelligent safety systems. From their self-climbing ability to their emergency counterweight release mechanisms, these machines are far more sophisticated than they appear. Understanding these nuances not only inspires appreciation for the construction industry but also underscores the critical importance of safety, quality components, and rigorous operational protocols.
For decades, companies like Nantong Haibao Construction Machinery Co., Ltd. have contributed to this ecosystem by focusing on the core components that keep construction machinery running safely and efficiently. Since 2005, Haibao has specialized in producing hoisting mechanisms, motors, reducers, and the vital SAJ anti-fall safety devices, ensuring that the heart of these massive machines operates with reliability. Their comprehensive approach, from raw material processing to final assembly, supports the global construction industry in building higher and safer.
