Have you ever wondered how elevators move smoothly between floors? Hydraulic elevators play a crucial role in modern buildings.
In this article, we’ll explore what hydraulic elevators are, their basic functions, and their significance in architecture. You’ll learn about their history and how they enhance accessibility and convenience for everyone.
A hydraulic elevator is a type of lift that uses hydraulic power to move. It relies on a system of pumps, cylinders, and valves to lift and lower the elevator car. Unlike traditional elevators, which use cables and pulleys, hydraulic elevators operate using fluid pressure.
In simple terms, hydraulic elevators function by pushing a piston inside a cylinder. When hydraulic fluid is pumped into the cylinder, the piston moves upward, lifting the elevator car. When the fluid is released, gravity pulls the car down.
Key Components:
● Hydraulic Cylinder: Houses the piston.
● Piston: Moves the elevator car.
● Pump: Supplies hydraulic fluid.
● Control System: Manages the elevator's operation.
Hydraulic elevators have a rich history. They date back to the mid-19th century. The first hydraulic lift was invented by Sir William Armstrong in 1846. This innovation changed the way buildings were designed.
Timeline of Key Developments:
● 1846: First hydraulic elevator created.
● 1900s: Widespread use in commercial buildings.
● 1970s: Introduction of more efficient systems.
Hydraulic elevators are crucial in today’s architecture. They allow for taller buildings and improved accessibility. Their design flexibility makes them suitable for various structures, from residential homes to skyscrapers.
Benefits in Architecture:
● Space Efficiency: Requires less space than traditional elevators.
● Design Versatility: Can fit into various architectural styles.
● Cost-Effective: Lower installation and maintenance costs.
These elevators enhance convenience for everyone, especially those with mobility challenges. They provide easy access to different floors, making buildings more user-friendly.
Accessibility Features:
● Low Entry: Easier access for wheelchairs and strollers.
● Smooth Operation: Reduces waiting times and improves user experience.
● Safety Measures: Equipped with emergency brakes and alarms.
Hydraulic elevators not only improve accessibility but also contribute significantly to the overall functionality of modern buildings.
Hydraulic elevators operate on a simple yet effective principle: the use of fluid pressure. When hydraulic fluid is pushed into a cylinder, it creates force that lifts the elevator car. This method is efficient and reliable for moving loads vertically.
At the heart of this operation is Pascal's Law. It states that when pressure is applied to a confined fluid, the pressure change occurs equally throughout the fluid.
Key Points of Pascal's Law:
● Equal Pressure: Any change in pressure is transmitted undiminished.
● Applications: This principle is fundamental in hydraulic systems.
Several key components work together in a hydraulic elevator:
1. Hydraulic Cylinder:
a. Houses the piston.
b. Provides the necessary space for fluid movement.
2. Piston:
a. Moves up and down within the cylinder.
b. Directly lifts the elevator car.
3. Pump and Motor:
a. The pump moves hydraulic fluid into the cylinder.
b. The motor powers the pump, controlling the fluid flow.
4. Control System:
a. Manages the elevator’s operation.
b. Ensures smooth and safe movement between floors.
The lifting process of a hydraulic elevator can vary based on the system type. There are two main types:
● Direct-Acting Systems:
○ The piston is directly attached to the elevator car.
○ Provides a straightforward lifting mechanism.
● Indirect-Acting Systems:
○ Uses a system of ropes and pulleys.
○ Offers more flexibility in design and installation.
Descending is just as important as lifting. When the elevator needs to go down, the hydraulic fluid is released from the cylinder. Gravity helps pull the elevator car down, while the control system regulates the descent speed.
Hydraulic fluid plays a crucial role in the operation of these elevators. It transmits power and ensures smooth movement.
Types of Hydraulic Fluids:
● Traditional Fluids:
○ Mineral oils commonly used.
○ Effective but can be harmful to the environment.
● Biodegradable Fluids:
○ Made from natural sources.
○ Environmentally friendly and safer in case of leaks.
In summary, hydraulic elevators utilize a well-designed system of components and principles to provide efficient vertical transportation in buildings.
Hydraulic elevators come in various types, each designed for specific applications and environments. Let’s explore the main types: direct-acting, indirect-acting, and holeless hydraulic elevators.
Description and Applications
Direct-acting hydraulic elevators use a piston directly connected to the elevator car. When the hydraulic fluid is pumped into the cylinder, the piston moves up, lifting the car. This type is commonly found in low-rise buildings, such as residential complexes and small commercial structures.
Advantages and Disadvantages
Advantages:
● Simple Design: Fewer components mean easier maintenance.
● Cost-Effective: Generally lower installation costs.
Disadvantages:
● Limited Height: Best for buildings with fewer floors.
● Space Requirements: Requires a pit for the cylinder.
Description and Applications
Indirect-acting hydraulic elevators employ a system of ropes and pulleys. The piston is not directly attached to the elevator car but instead lifts it through a series of cables. This design allows for greater flexibility in building design and is often used in mid-rise buildings.
Advantages and Disadvantages
Advantages:
● Greater Height Capacity: Can serve taller buildings.
● Design Flexibility: Easier to fit into various architectural styles.
Disadvantages:
● Complex Installation: More components can lead to higher installation costs.
● Maintenance Needs: Requires regular checks on the pulley system.
Description and Unique Features
Holeless hydraulic elevators are a modern innovation. They do not require a deep pit or a full hydraulic cylinder. Instead, they use a unique mechanism that allows the elevator to operate without drilling deep holes. This makes them ideal for buildings where space is limited.
Suitable Building Types and Conditions
These elevators are perfect for:
● Low to Mid-Rise Buildings: Typically up to six stories.
● Renovation Projects: Great for retrofitting older buildings.
Comparison with Traditional Hydraulic Elevators
Feature | Traditional Hydraulic Elevators | Holeless Hydraulic Elevators |
Installation Depth | Requires deep pits | Minimal depth required |
Height Limit | Up to 10 stories | Generally up to 6 stories |
Cost | Higher installation cost | More cost-effective |
Maintenance | Standard maintenance needs | Similar, but simpler design |
Hydraulic elevators, in their various forms, offer unique benefits tailored to different building needs. Each type serves specific functions, making them versatile for modern architecture.
Hydraulic elevators offer a range of advantages, making them a popular choice for various applications. Let’s dive into the key benefits.
Installation and Maintenance Costs Compared to Other Elevator Types
One of the primary advantages of hydraulic elevators is their cost-effectiveness. The initial installation costs are often lower than those of traction elevators. Additionally, maintenance expenses tend to be manageable due to their simpler design.
● Lower Installation Costs: Ideal for budget-conscious projects.
● Reduced Maintenance Needs: Fewer complex components mean less frequent repairs.
Ideal for Industrial and Commercial Use
Hydraulic elevators excel in handling heavy loads. They are particularly suited for industrial and commercial settings where transporting goods is essential.
● Robust Design: Capable of lifting significant weights.
● Versatile Applications: Perfect for warehouses, factories, and freight transport.
Passenger Experience and Comfort
Another significant benefit is the smooth and quiet operation of hydraulic elevators. Passengers appreciate the comfortable ride, which enhances overall satisfaction.
● Minimal Noise Levels: Operate quietly, reducing disturbances.
● Smooth Movement: Provides a pleasant experience for users.
Space Requirements and Design Adaptability
Hydraulic elevators are versatile regarding installation. They can fit into various building designs and space constraints.
● Adaptable Designs: Suitable for tight spaces and unique layouts.
● No Need for Overhead Machinery: This flexibility simplifies architectural planning.
Use of Biodegradable Hydraulic Fluids and Environmental Impact
Sustainability is becoming increasingly important. Many hydraulic elevators use biodegradable hydraulic fluids, which minimize environmental impact.
● Eco-Friendly Options: Reduces reliance on harmful substances.
● Lower Environmental Footprint: Aligns with green building practices.
Reduction of Environmental Pollution Risks
Hydraulic elevators can also help reduce pollution risks. Their design minimizes leaks and spills, contributing to a cleaner environment.
● Sealed Systems: Prevents fluid leaks.
● Regulatory Compliance: Meets environmental standards.
Feature | Hydraulic Elevators | Other Elevator Types |
Installation Cost | Generally lower | Often higher |
Maintenance Frequency | Less frequent | More frequent |
Weight Capacity | High | Varies |
Noise Level | Low | Can be high |
Environmental Impact | Biodegradable fluids | May use harmful substances |
Hydraulic elevators provide numerous advantages, making them an excellent choice for many applications. Their cost-effectiveness, high capacity, and sustainability features set them apart in the elevator market.
While hydraulic elevators have several advantages, they also come with notable drawbacks. Let’s explore the key disadvantages.
Maximum Height and Efficiency Concerns
Hydraulic elevators are typically limited in the height they can efficiently serve. They work best in low-rise to mid-rise buildings.
● Height Limitations: Usually effective for buildings up to 6–8 stories.
● Efficiency Issues: As height increases, efficiency tends to decrease.
Typical Use Cases for Low-Rise vs. Mid-Rise Buildings
These elevators are most commonly found in low-rise applications, like residential buildings or small offices, where their limitations are less of an issue.
● Low-Rise Buildings: Ideal for homes and small businesses.
● Mid-Rise Buildings: Can be used, but not as efficient as other systems.
Comparison with Other Elevator Technologies
Hydraulic elevators generally operate at slower speeds compared to traction elevators. This can be a drawback in high-traffic buildings.
● Speed Limitations: Typically operate at 100–200 feet per minute.
● Traffic Implications: Slower speeds can lead to longer wait times during busy hours.
Regular Checks and Potential Issues
Like any system, hydraulic elevators require regular maintenance. Neglecting this can lead to more significant problems.
● Common Maintenance Tasks: Regular fluid checks, seal inspections, and cylinder maintenance.
● Frequency: Typically every 1–3 months, depending on usage.
Potential Issues
If not properly maintained, hydraulic elevators can face various issues, including leaks and performance degradation.
● Leak Risks: Fluid leaks can lead to operational failures.
● Performance Drops: Wear and tear can slow down operation.
Risks Associated with Traditional Hydraulic Fluids
Hydraulic fluids can pose environmental risks, especially if leaks occur. Traditional fluids may contain harmful substances.
● Fluid Composition: Some fluids are not eco-friendly.
● Leak Risks: Can contaminate soil and water sources.
Impact on Soil and Water Sources in Case of Leaks
Leaks from hydraulic systems can lead to significant environmental damage. It’s crucial to monitor and manage these risks.
● Soil Contamination: Harmful chemicals can seep into the ground.
● Water Source Risks: Leaks can affect nearby water bodies, impacting ecosystems.
Disadvantage | Impact on Use | Solutions |
Limited Height Capabilities | Not ideal for tall buildings | Consider alternative systems |
Slower Speed | Longer wait times | Improve traffic management |
Maintenance Requirements | Increased costs if neglected | Regular scheduled maintenance |
Environmental Concerns | Potential contamination | Use eco-friendly fluids |
Hydraulic elevators have their share of disadvantages. Understanding these can help in making informed decisions about elevator systems for different building types.
When considering a hydraulic elevator, it's essential to compare it with other elevator types, particularly traction elevators. Let’s break down the key differences and when to choose each type.
Key Differences in Operation and Application
Traction elevators use a system of ropes and pulleys to move the elevator car, while hydraulic elevators rely on a fluid-driven piston. This fundamental difference affects their applications.
● Traction Elevators: Better suited for high-rise buildings due to their speed and efficiency.
● Hydraulic Elevators: Ideal for low to mid-rise buildings where heavy loads need to be transported.
Cost and Efficiency Considerations
Cost plays a significant role in choosing between these elevator types. Hydraulic elevators are generally less expensive to install but may have higher operational costs over time.
● Hydraulic Elevators: Lower initial costs, but higher energy consumption.
● Traction Elevators: Higher installation costs, but more energy-efficient in the long run.
Energy Efficiency
Traction elevators are typically more energy-efficient than hydraulic elevators. This makes them a better choice for buildings with high traffic or those looking to minimize energy costs.
● Hydraulic Systems: Consume more energy due to constant fluid pressure.
● Traction Systems: Use less energy, especially in high-rise applications.
Feature | Hydraulic Elevators | Traction Elevators |
Initial Cost | Generally lower | Generally higher |
Energy Efficiency | Less efficient | More efficient |
Best Use Case | Low to mid-rise buildings | High-rise buildings |
Maintenance Needs | Regular checks required | More complex maintenance |
Machine Room Needs for Traction Elevators vs. Hydraulic Elevators
Space considerations are crucial when deciding on an elevator type. Traction elevators require a machine room above the elevator shaft, while hydraulic elevators need a pit at the bottom.
● Hydraulic Elevators: Need less overhead space, making them suitable for buildings with limited height.
● Traction Elevators: Require additional space for the machine room, which can be a limiting factor in some designs.
Elevator Type | Machine Room Requirement | Pit Depth |
Hydraulic Elevators | No machine room needed | Requires a deep pit |
Traction Elevators | Requires machine room above | Shallower pit |
Choosing between a hydraulic elevator and a traction elevator depends on specific building needs, including height, cost, and space availability. Understanding these differences helps in making an informed decision.
Hydraulic elevators are versatile systems used in various settings. Let’s explore their applications across different types of buildings.
Benefits for Multi-Story Homes
Hydraulic elevators are particularly beneficial for multi-story residences. They provide convenience and accessibility, especially for residents with mobility issues.
● Accessibility: Make it easier for those with disabilities or elderly residents to move between floors.
● Space Efficiency: Require less overhead space compared to other elevator types, fitting well in smaller homes.
Use in Shopping Centers, Offices, and Public Buildings
In commercial settings, hydraulic elevators play a crucial role. They are commonly found in shopping centers, offices, and public buildings.
● Shopping Centers: Help transport shoppers and goods between floors efficiently.
● Office Buildings: Provide easy access to different levels, enhancing the work environment.
Transporting Large Merchandise or Equipment
Hydraulic elevators are also ideal for moving large items, which is essential in many commercial spaces.
● Heavy Loads: Can handle bulky merchandise, making them perfect for retail environments.
● Equipment Transport: Useful in offices for moving heavy office equipment or supplies.

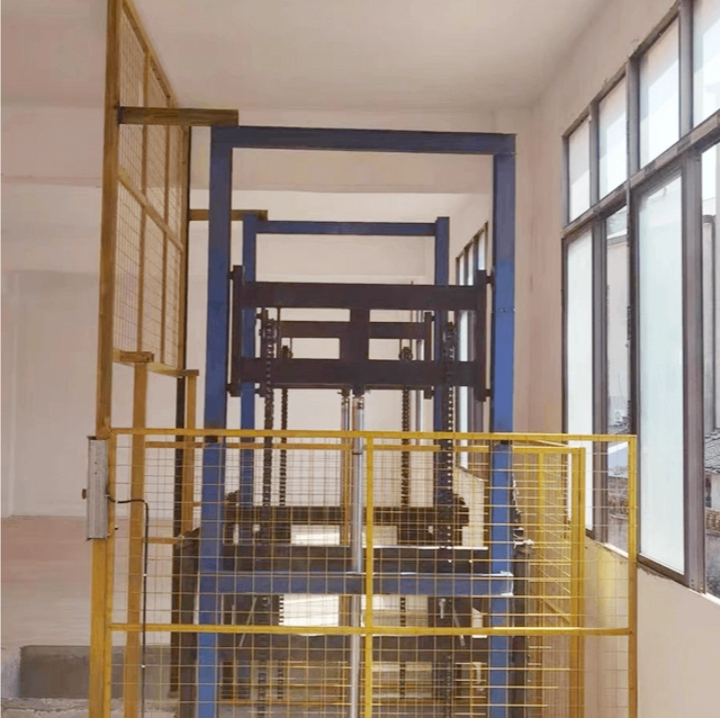

Role in Factories and Warehouses
In industrial settings, hydraulic elevators are invaluable. They facilitate the movement of heavy machinery and raw materials.
● Factories: Help transport products from production lines to storage areas.
● Warehouses: Efficiently move large pallets and equipment, improving workflow.
Transporting Heavy Machinery and Raw Materials
These elevators are designed to handle significant weights, making them suitable for industrial applications.
● Heavy Machinery: Can lift and lower large machines safely and efficiently.
● Raw Materials: Ideal for moving bulk materials, enhancing operational efficiency.
Application Type | Key Benefits | Typical Use Cases |
Residential Buildings | Accessibility for residents | Multi-story homes |
Commercial Buildings | Efficient transport of goods | Shopping centers, offices |
Industrial Buildings | Heavy load handling | Factories, warehouses |
Hydraulic elevators are essential in various applications, providing accessibility and efficiency across residential, commercial, and industrial sectors. Their ability to handle heavy loads while being space-efficient makes them a popular choice.
A: The typical lifespan of a hydraulic elevator ranges from 20 to 30 years, depending on usage and maintenance.
A: Hydraulic elevators generally require maintenance every six months to ensure safe and efficient operation.
A: Yes, hydraulic elevators are considered safe when properly maintained and installed according to regulations.
A: Common issues include leaks, slow operation, and malfunctioning control systems.
A: Yes, hydraulic elevators can be retrofitted into existing buildings, often requiring less space than other types.
A: Key factors include building height, load capacity, space availability, and intended use.
Hydraulic elevators are essential in various settings. They provide accessibility and efficiency in residential, commercial, and industrial buildings.
Future trends include innovations in design and energy efficiency. These advancements aim to enhance performance and reduce operational costs.
When choosing a hydraulic elevator, consider the specific application and building requirements. Understanding these factors ensures the right fit for your needs.
